Safety & Prerequisites Before Going to Site

• ELECTRICAL HAZARD: Installation must be performed by a licensed electrician in accordance with AS/NZS 3000.
• SOLAR GENERATION REQUIRED: Arrive during daylight hours. Testing requires active solar generation.

BEFORE YOU START - MANDATORY CHECKS

• Completed SwitchDin Accreditation Course (Accreditation)
• Confirmed Stormcloud Installer Access
• Verified System Model Compatibility CRITICAL: HP Compatibility List
• Read What to Do Before Site Visit
• SGD Firmware Updated (24hr internet connection)
• All Hardware Verified
• Network Requirements Confirmed
  - Standard network? Proceed normally
  - Private/secure network? Read this article What ports and addresses must pass firewall for our Droplet on a secured network.

SUPPORT CONTACTS

Sofar compatible devices

Here are the Sofar inverters compatible with the Horizon Power Smart Connect Solar program.

⚠️ IMPORTANT: All systems over 30kW require FIM controller. See special installation requirements.

Please read Above 30kW PV generation and FIM controller for crucial information for the installation of these systems.

Hardware & Software Checklists

Hardware:

CORE SGD PACKAGE

Please ensure that your SwitchDin SGD box contains the following parts before going to site:

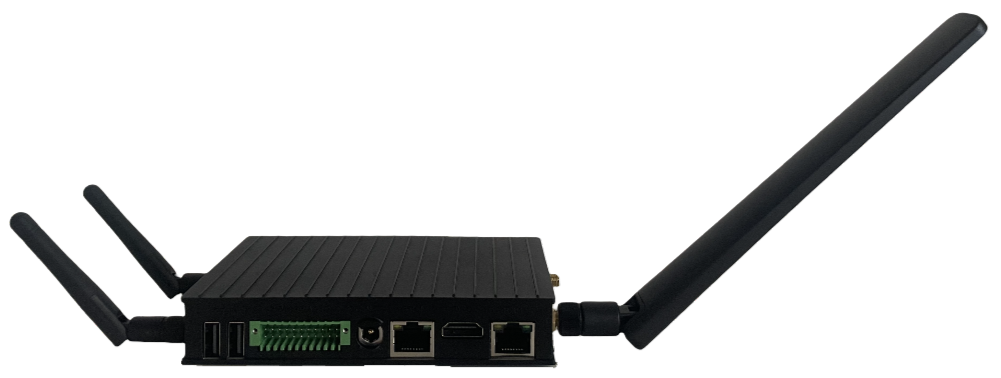

• SGD (Droplet) unit

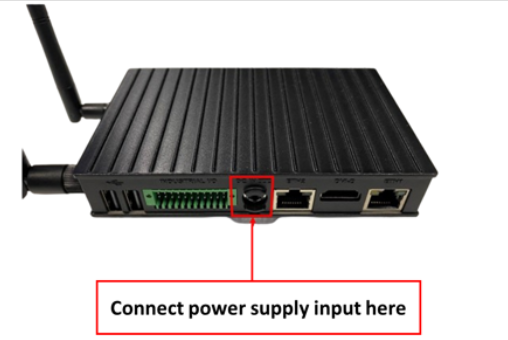

• Power supply (12V DC)

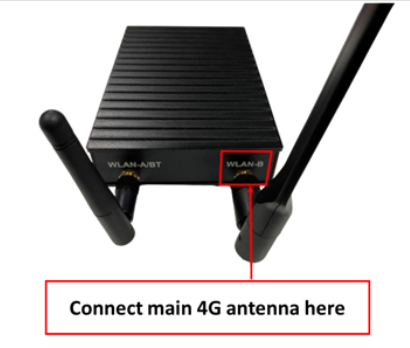

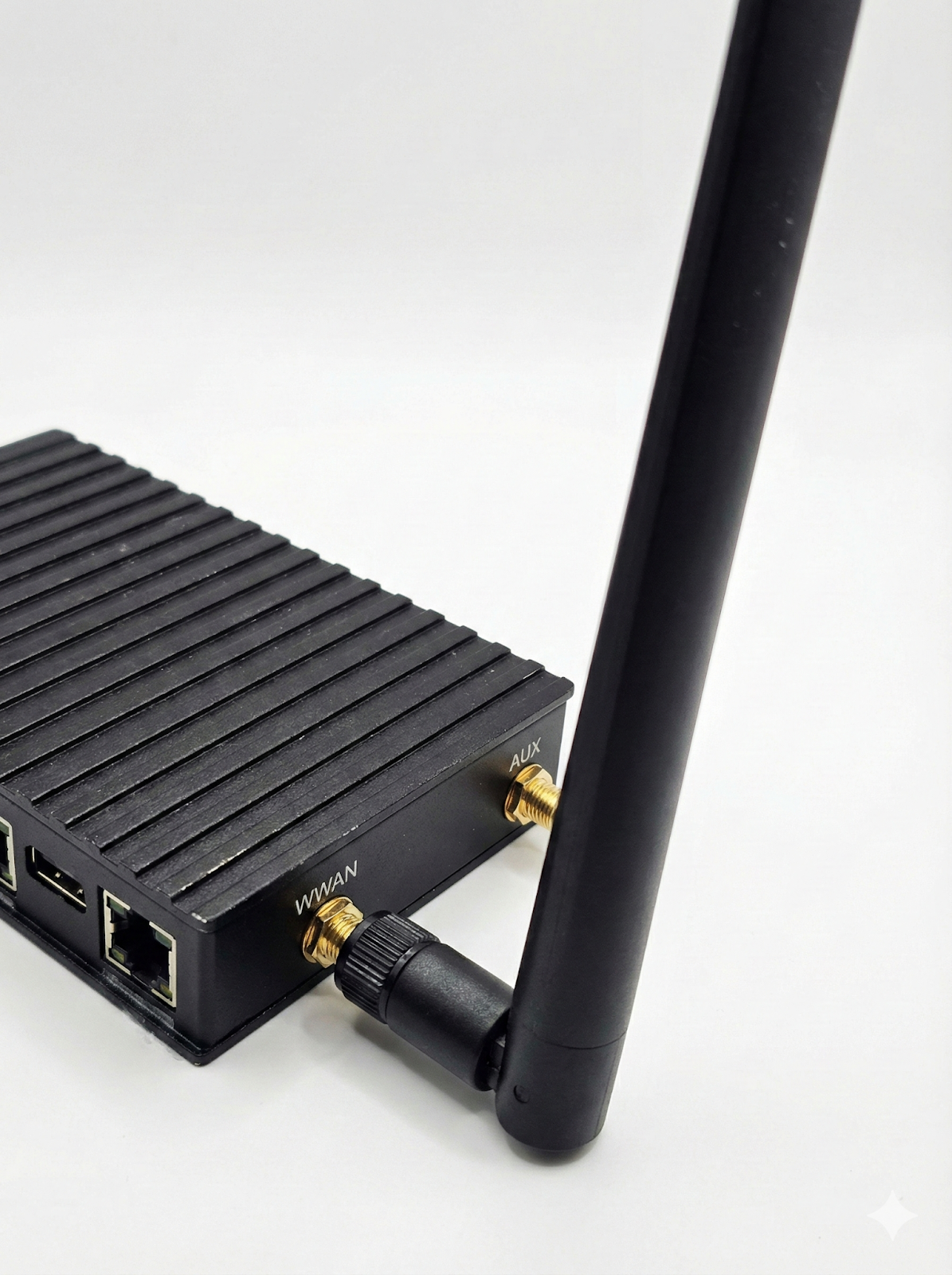

• 4G Antennas (2x or 4x depending on SGD version)
• SIM card (pre-installed in SGD)
• DIN-Rail mounting bracket

ACCESSORIES FOR INTERNET CONNECTION:

• CAT6 Ethernet cable
• USB-to-Ethernet adapter (SGD pre-Nov 2025 only)-Only for old version of SGDs

ACCESSORIES FOR INVERTER-SGD CONNECTION:

If the Model connection type is TCP in Table 1 above:

• CAT6 Ethernet Cable

If the model connection type is RS485 in Table 1 above:

• Any serial/twisted pair cable (RJ45)

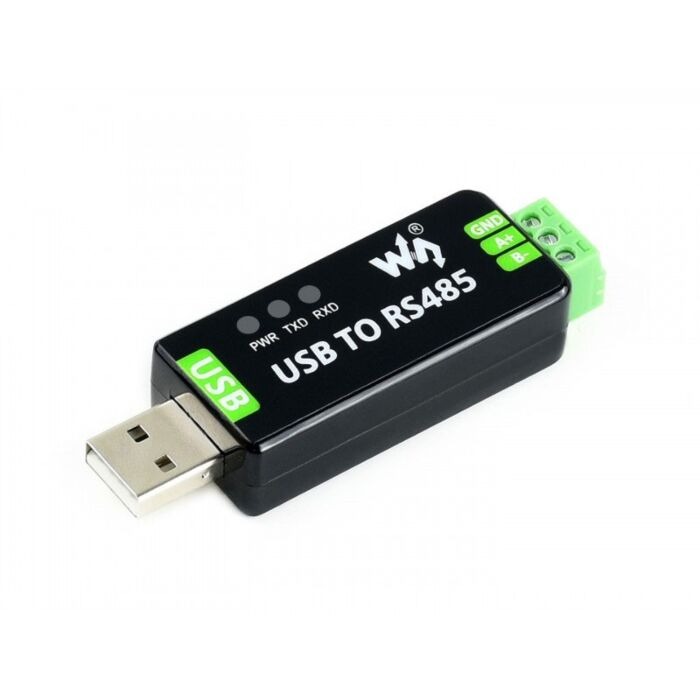

• RS485 to USB converter (recommended). This is not supplied with the SGD and must be provided by the installer.

RECOMMENDED SPARES

1. Spare SGD unit (if possible)
2. Extra cables (of various lengths)
3. Extra SGD power supply
4. Extra USB-RS485 converter (for RS485 connected inverters)

INSTALLER TOOLS:

• Mobile device with Stormcloud by SwitchDin app installed

Software:

Ensure you have a user account with the required permissions for the following applications:

Sofar app

Stormcloud (SwitchDin): Ensure you pass the HP Installer accreditation to get installer permissions open on your user account.

Android Stormcloud app
iOS Stormcloud ap

Physical connection

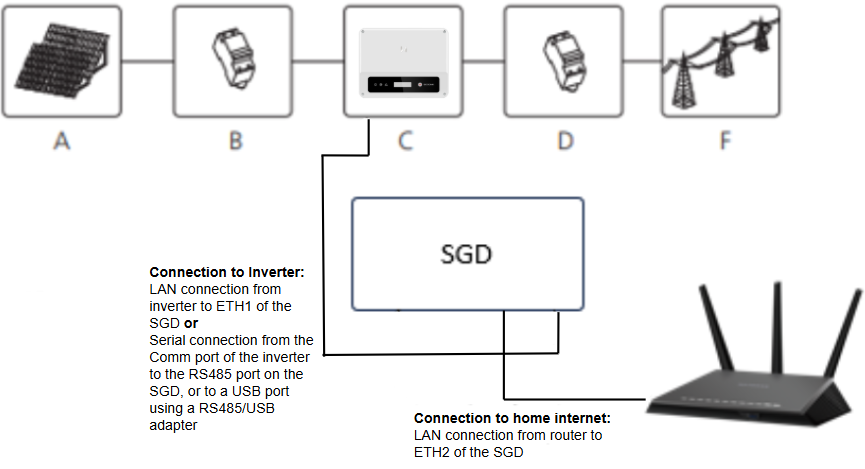

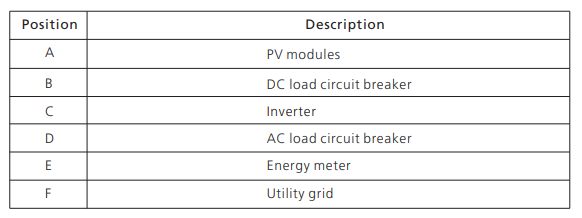

Behind the meter configuration overview

Here is the overview of the physical connections you need to establish between devices

Mount the SGD

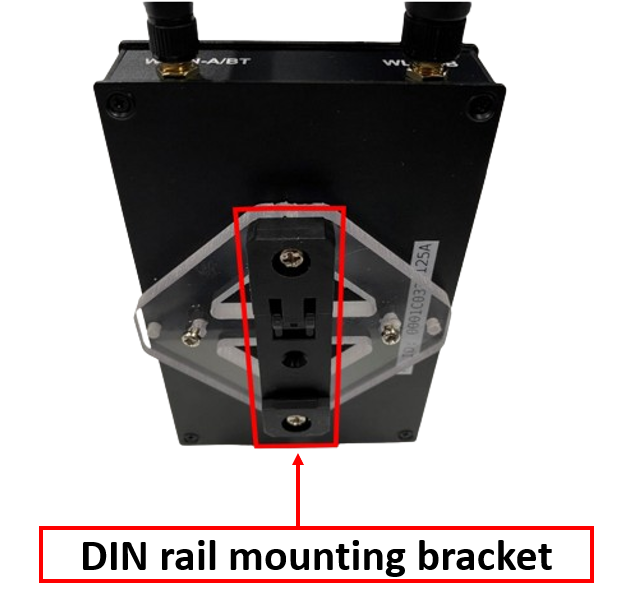

Depending on the SGD model, the DIN-Rail mounting bracket may be pre-fitted, or self-installation. Please refer to the following video for instructions on the self-installation of the DIN-Rail mounting bracket: https://www.youtube.com/watch?v=owM948WS1cQ

Connect to Home Internet

Connect Ethernet cable from a spare LAN port on the router (or any internet source) directly to the ETH2 port of the SGD.

Important note: No other Ethernet port will be available for internet connection

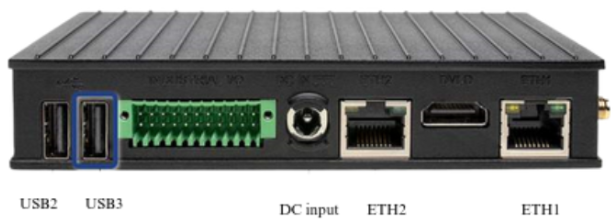

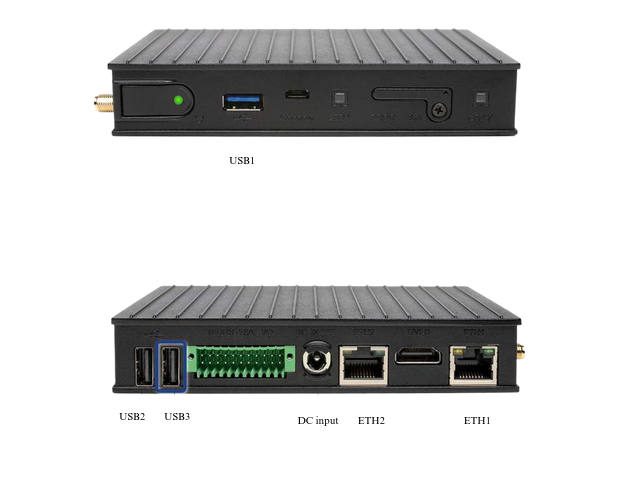

For SGDs provisioned before November 2025, these may be connected to the internet by plugging the USB-Ethernet adapter with a CAT 6 cable from the home router into the USB port number 3 as shown here. (Please be aware that there is no other USB port that will accept any Internet traffic but USB port 3.

Connect to Sofar inverter

There are two ways of connecting a solar inverter to SwitchDin's SGD, depending on the model. Please look at Table1.1 to determine the model and which connection it supports.

1. Through RS485 connection

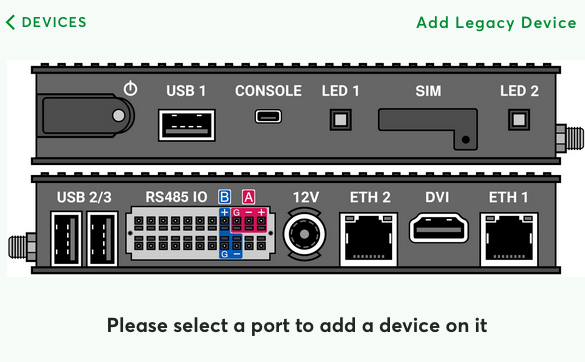

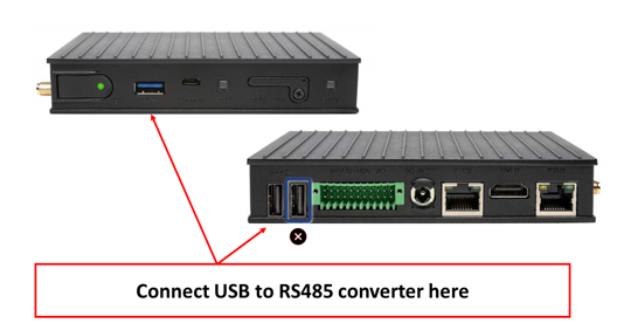

The SGD has a built-in RS485 port which can be used for the connection, or you can use a USB-RS485converter (recommended).

If you are using a USB port to connect the inverter then you need to use a USB-RS485 converter.

Commissioning the SGD

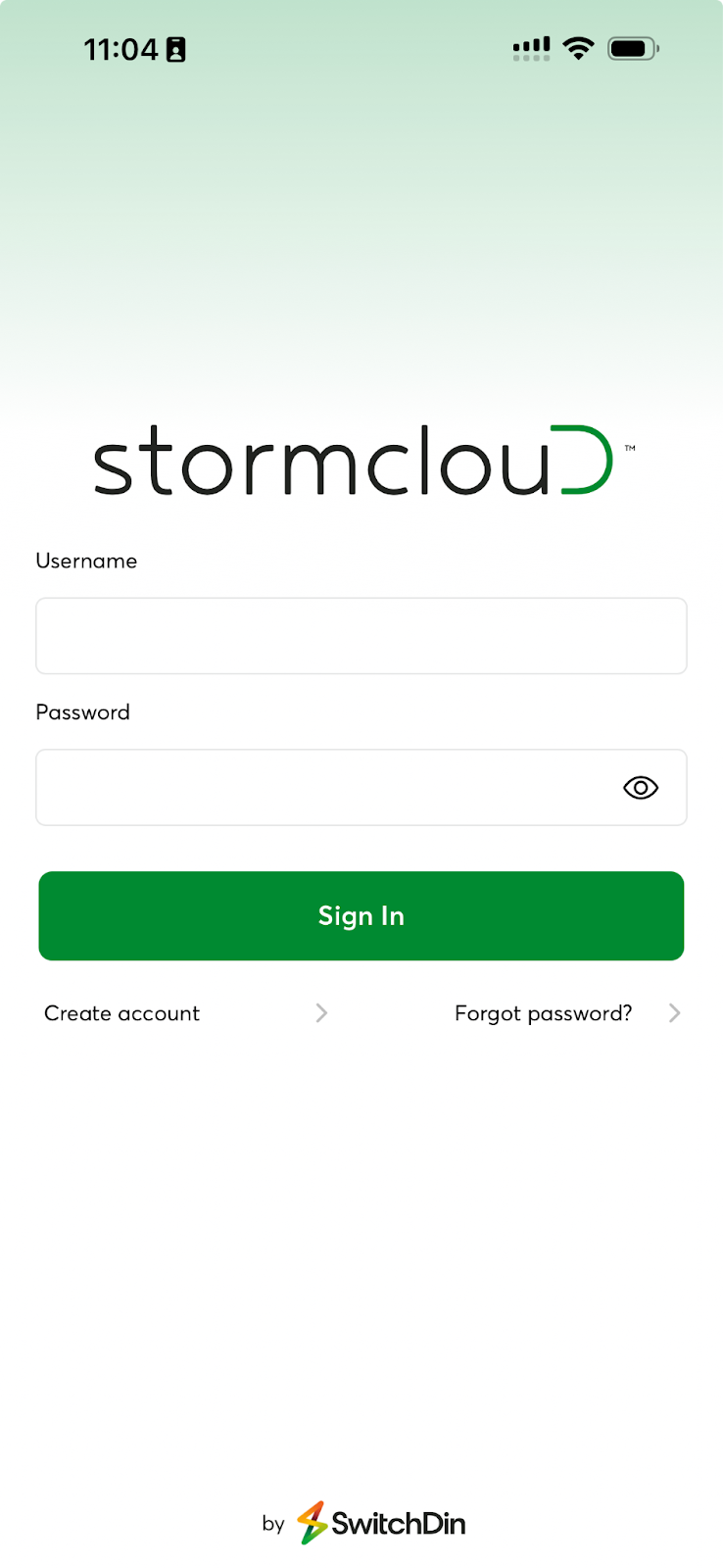

Open the Stormcloud application and sign in.

• Please follow this link if you are creating your user account. You must ensure you have permissions on this account opened by SwitchDin.
• Your username is an email address. (both username and password are CASE sensitive)
• If two-factor authentication has been enforced, you will receive a passcode valid for 300 seconds in your email inbox to finish logging in to the SwitchDin portal.

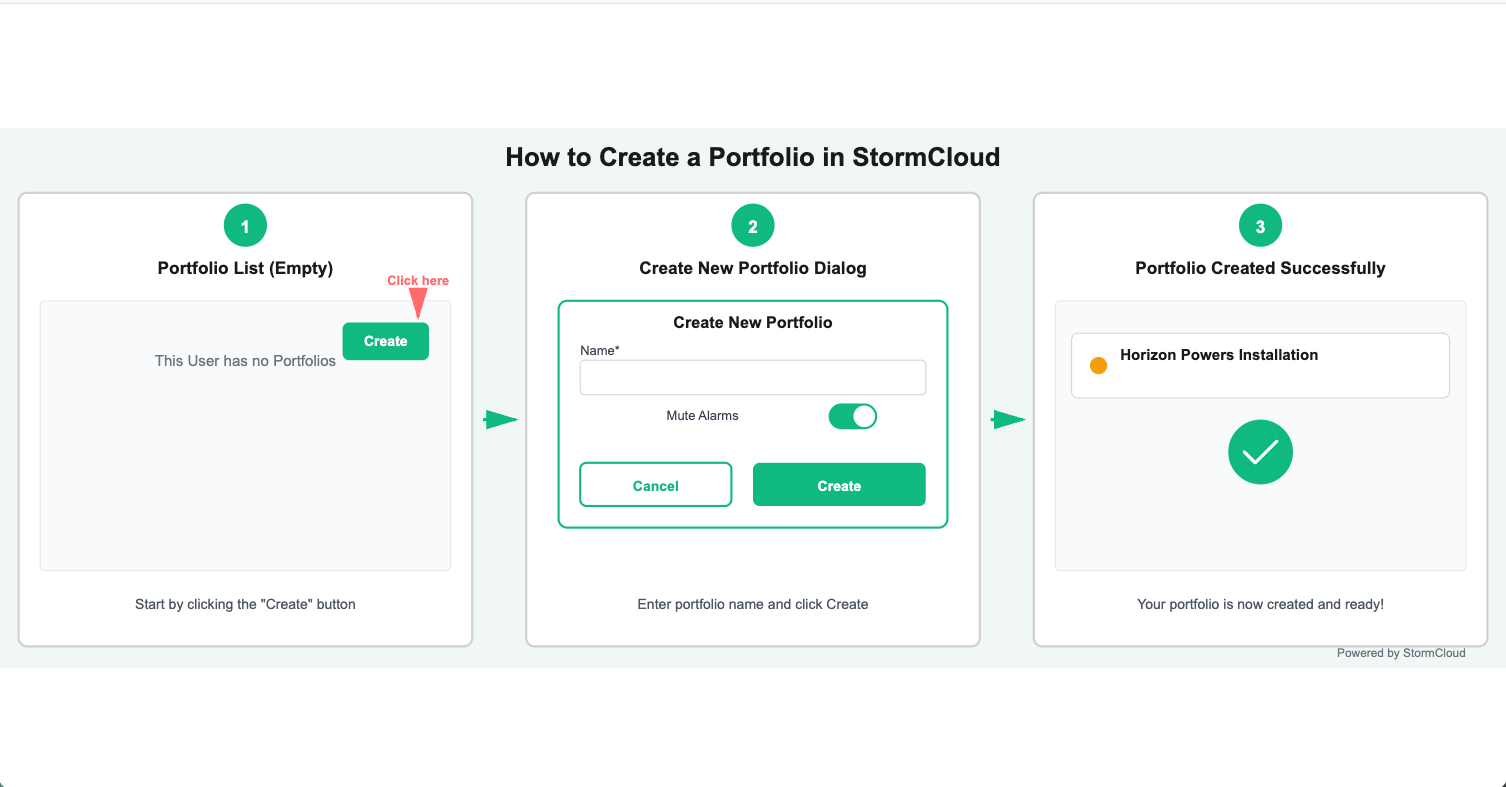

Create a portfolio

When you first log into your StormCloud app, you'll need to create a portfolio - a folder that groups all the sites where you install SGDs (Solar Gateway Devices).

Step 1: Navigate to Portfolio Monitoring After logging in, go to the Portfolio Monitoring section. You'll see an empty portfolio list with a green "Create" button in the top right corner.

Step 2: Fill in Portfolio Details Click the "Create" button. A dialog box will appear asking you to:

• Enter a name for your portfolio (required)
• Toggle "Mute Alarms" on or off based on your preference

As an installer, we recommend using your business name, your area, or a client name to easily identify your portfolio.

Step 3: Confirm Creation Click the green "Create" button in the dialog box. Your new portfolio will now appear in the Portfolio List, ready for you to add sites and monitor your SGD installations.

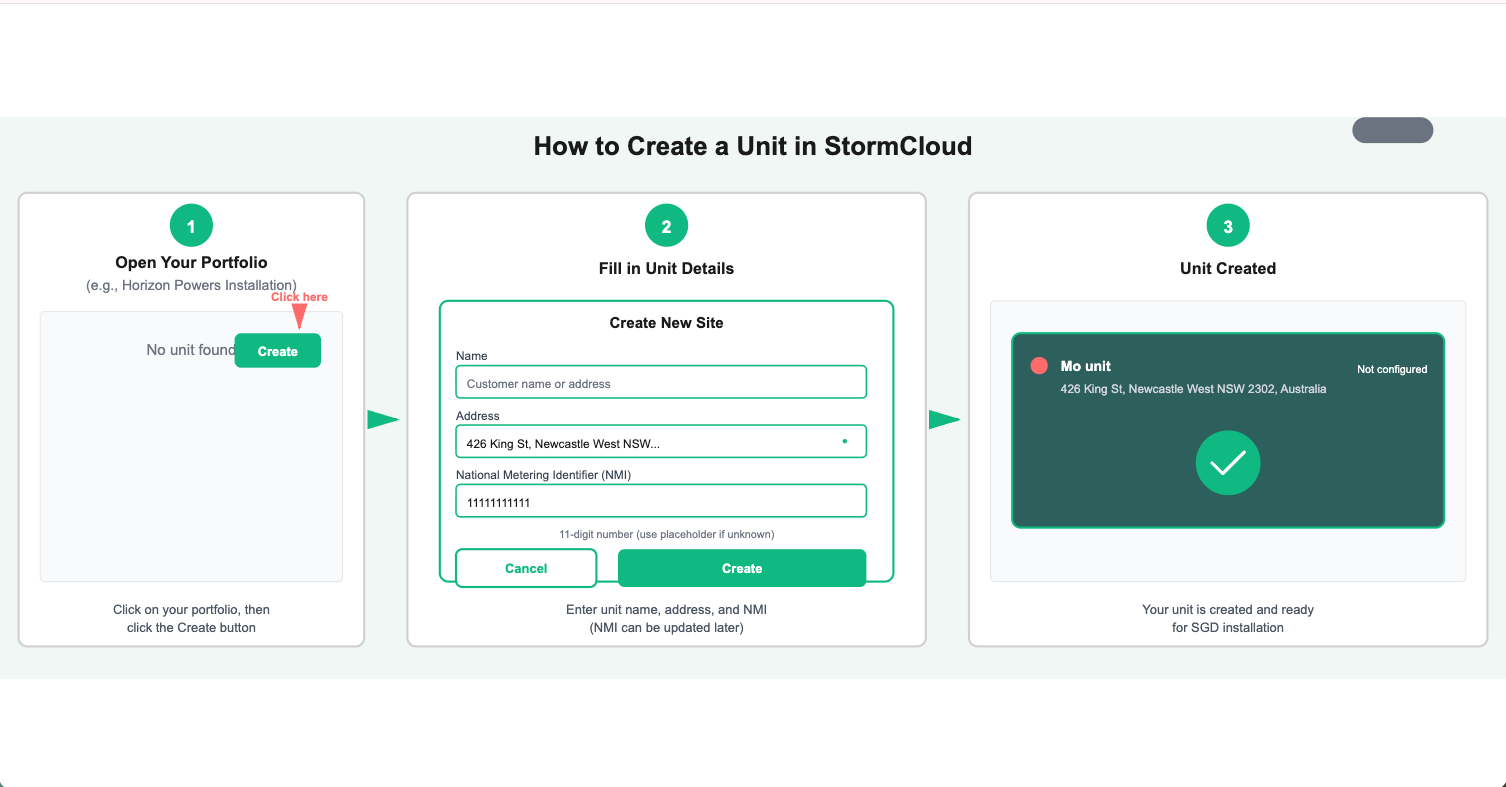

Create a unit

Tap on your portfolio to create your first unit. Tap on 'Create' in the top right corner.

In the Unit Name field, please use the following naming convention:
Street address or significant place name - Town - Inverter size (kW)

• Example: 12 Test Road - Onslow - 5kW or Broome Test School - Broome - 25kW

Enter the address: Start typing in the Address field and select from the dropdown suggestions.

Add the NMI: Enter the 11-digit National Metering Identifier. Don't have it yet? Use a placeholder like 11111111111 and update it later.

Click "Create" and you're done. Your unit is now ready for monitoring.

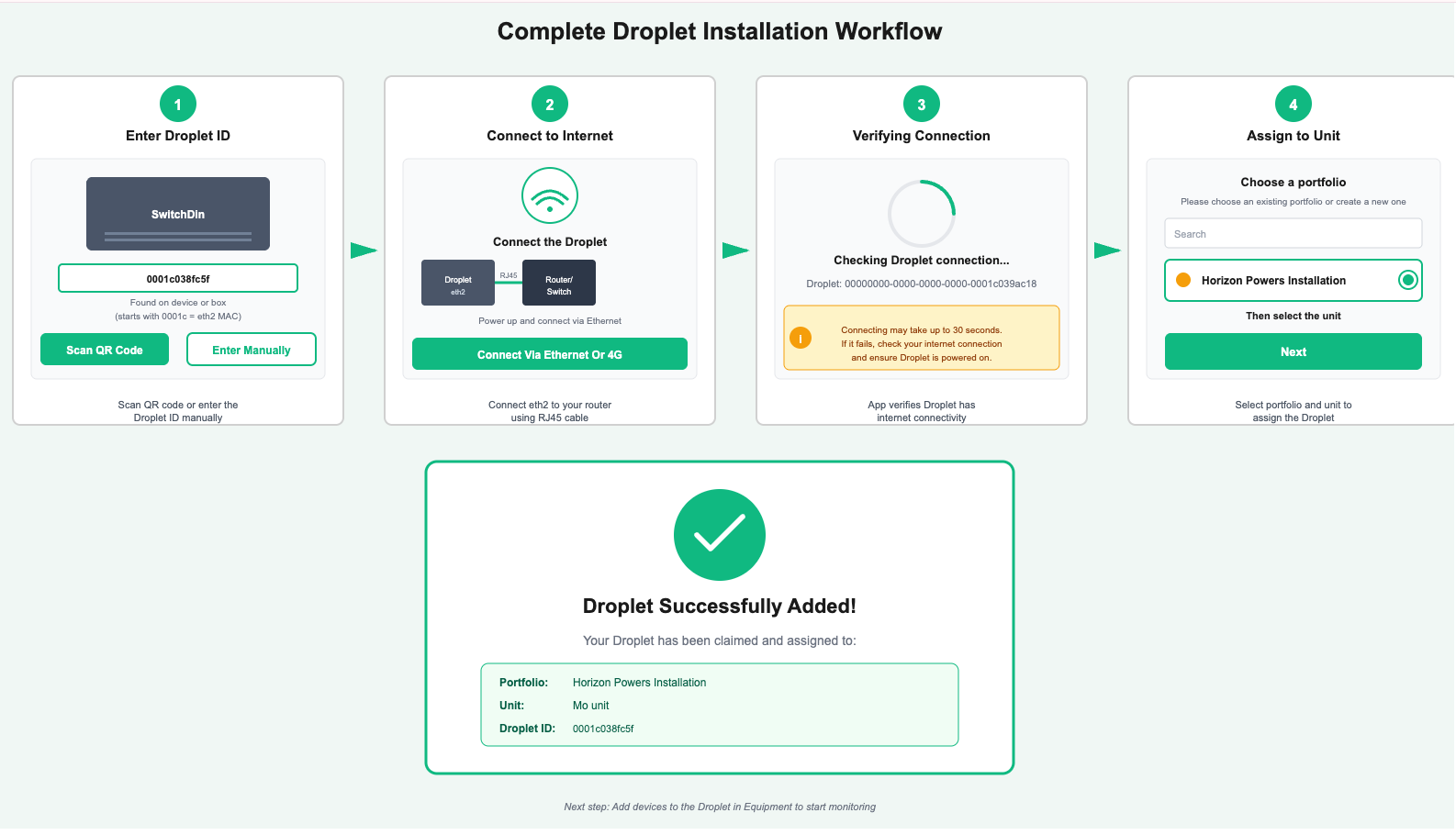

Add the SGD to the unit

Once you've created a unit, you need to add an SGD (Secure Gateway Device) to start monitoring.

Step 1: Open Your Unit From your portfolio, select the unit you just created. You'll see the unit overview with tabs at the bottom.

Step 2: Go to Equipment Tab Tap on the "Equipment" tab. You'll see an empty state with the message "There's nothing here yet. Add a Droplet to begin."

Step 3: Claim Your Droplet Tap the "Claim droplet" button. This will take you to the installer section where you can register your SGD.

Note: You must be an accredited installer to access the installation section and claim droplets.

Step 4: Enter Droplet ID (Serial number) In the installer section, you have two options to identify your Droplet:

Scan QR Code: Use the QR code found on the SGD box or on the device itself

Enter Manually: Type the Droplet ID, which always starts with 0001c

Can't find the ID? Look for the ETH2 MAC address label on the Droplet—that's your Droplet ID.

Step 5: Connect to Internet After entering the Droplet ID and confirming:

Power up the Droplet

Connect the eth2 port on the SGD to your router (for SGD provisioned after November 2025)or switch using an RJ45 ethernet cable

Tap "Connect Via Ethernet Or 4G" in the app

Step 6: Verify Connection ,the app will attempt to communicate with the Droplet to verify it has internet connectivity. This process may take up to 30 seconds. If the connection fails, verify that:

• The Droplet is powered on
• The ethernet cable is securely connected
• Your internet connection is working properly

Step 7: Assign to Portfolio and Unit Once the connection is verified, you'll be prompted to select the portfolio and unit where this Droplet should be assigned. Choose your existing portfolio or create a new one, then select the specific unit and tap "Next."

Success! Your Droplet has been successfully added to the unit. The next step is to add devices to the Droplet in the Equipment section to begin monitoring your solar installation data.

Update firmware

Select 'Manage Devices' and tap at the top of the screen to download the latest firmware update if available.

Manage Devices

 Now that your Droplet is added to the unit, you need to configure it to communicate with your inverters.

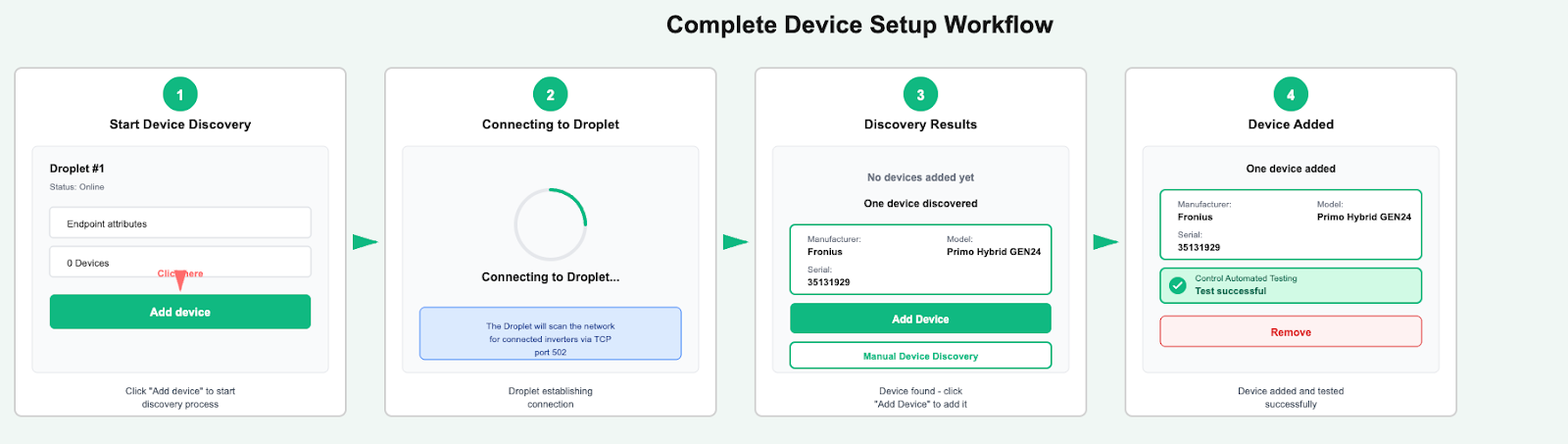

Step 1: Inside your unit, click on the "Equipment" tab at the bottom. You'll see your Droplet listed with its Endpoint ID and current status. Under the Droplet information, you'll see sections for "Endpoint attributes" and "Devices."

Step 2: click "Add device",if the connection is okay it will automatically show up.Then you just need to click add

If you have a meter normally the meter role will be a “grid meter role”

Add the Horizon Power CSIPAUS Controller

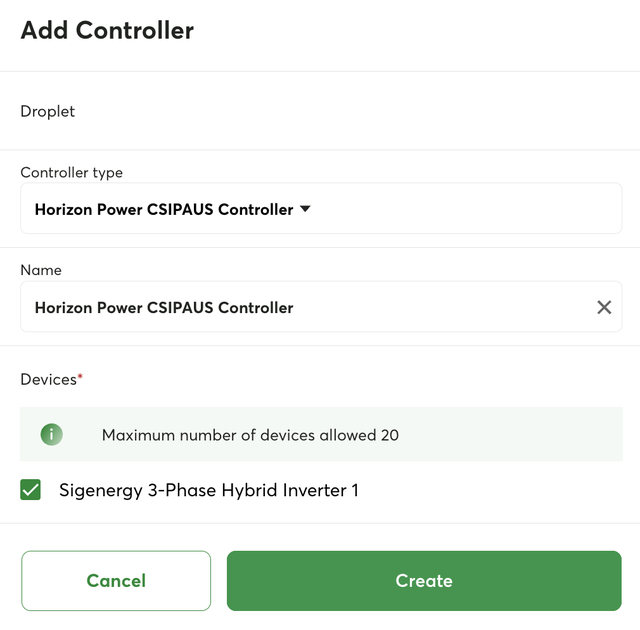

Add a Controller After adding your devices, switch to the "Controllers" tab in the Equipment section. Click "Add Controller" and select your controller type from the dropdown menu—in this case, "Horizon Power CSIPAUS Controller."

After adding the controller — DERMS registration

On a first installation, it can take up to 24 hours for Horizon Power to register the site with DERMS. Horizon Power carries out its own testing before registering. Until registration is complete the controller will curtail solar generation, so the system may generate little or nothing even though the SGD and inverter are working correctly.

If the system is still being curtailed after 24 hours, contact the Horizon Power DER Technologies team at der.technologies@horizonpower.com.au.
