Sites with PV generation greater than 30.01kW must follow a specific commissioning process coordinated with Horizon Power and SwitchDin.

Context

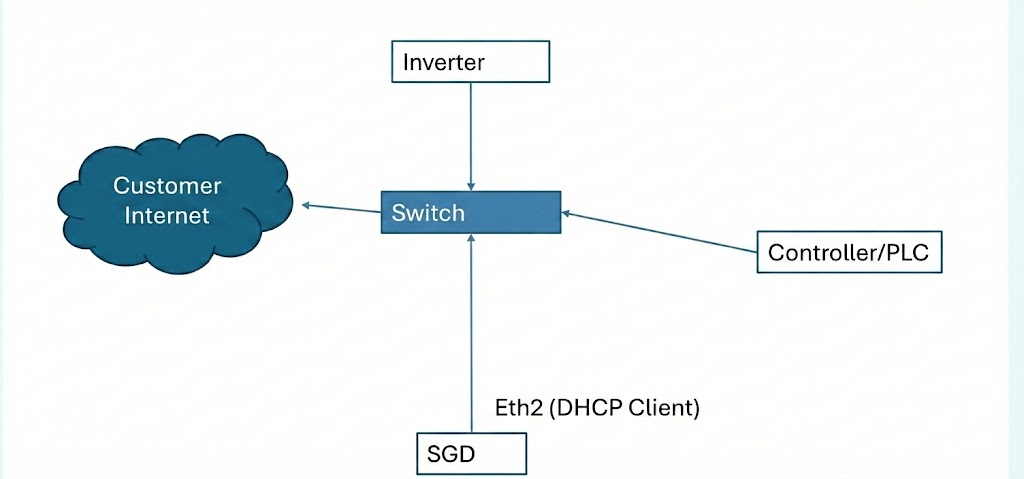

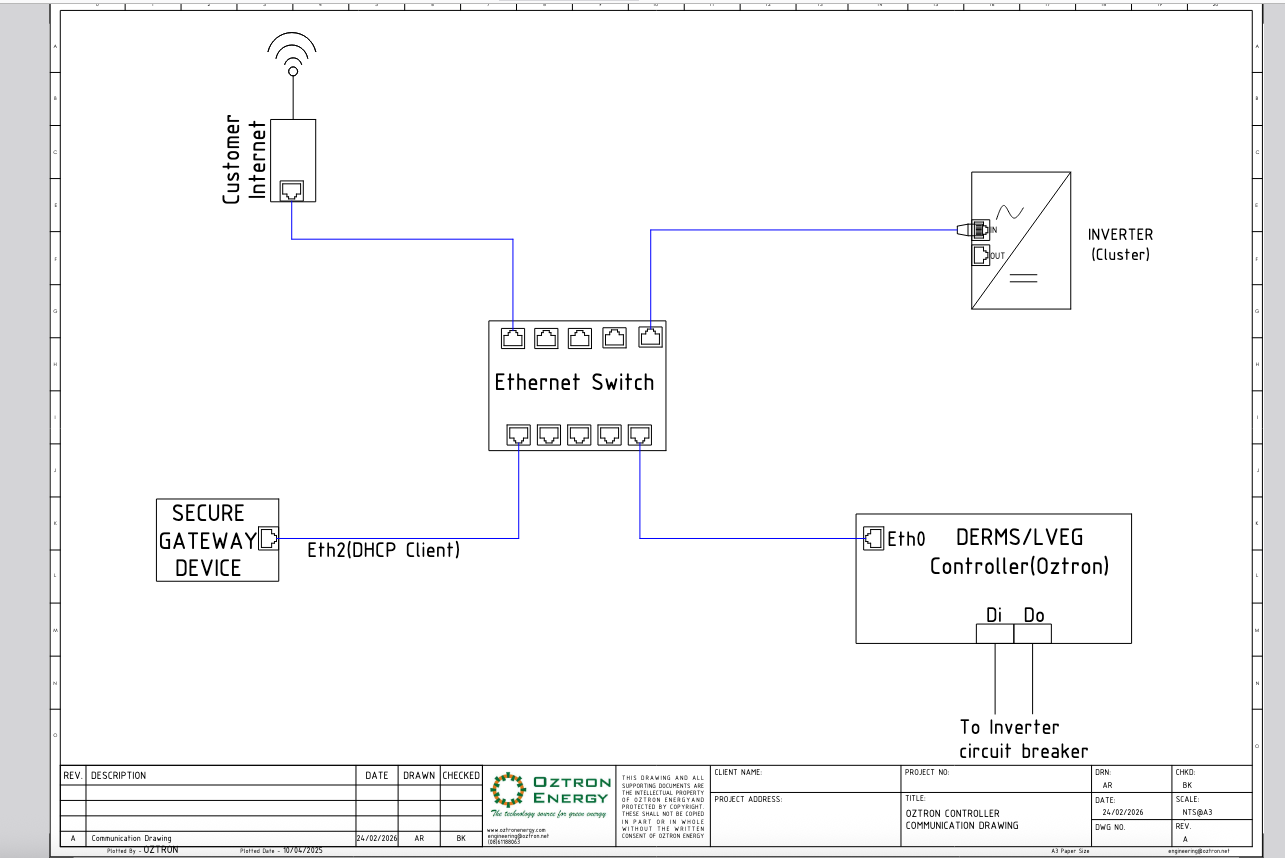

In this scenario, all the inverters must talk to a single controller/Protection Relay/PLC.
This device controls all the inverters and acts as an aggregator, providing a single point of control to the SGD.

Private/Secured Networks

For Horizon Power sites using the FIM controller with private or secure networks, please inform us ahead of the scheduled installation date.
This allows us to coordinate with the site's IT department to discuss any network requirements or potential restrictions.
Be prepared to liaise with the site’s IT department if needed, especially if any specific routing or firewall configurations are required to bring the droplet online when working with the FIM controller. If the site uses a secure network, please help coordinate a meeting or email exchange between us and the IT department to ensure a smooth setup.

Bring Additional Equipment

For added security and redundancy, ensure you bring an extra Ethernet-to-USB adapter. This will help resolve any potential connectivity issues on-site.

FIM Controller connection

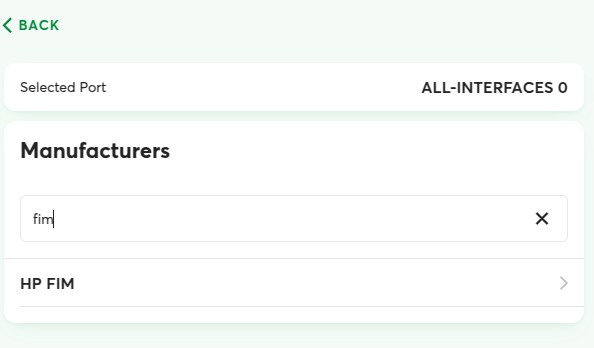

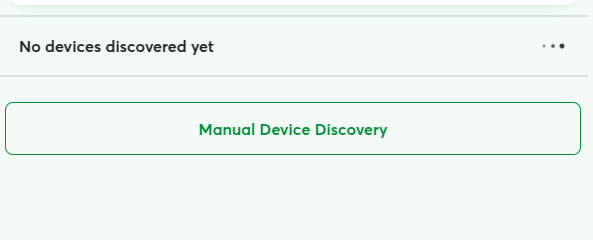

The SGD will need to be loaded with the HP FIM controller map by adding the “Oztron Controller”.

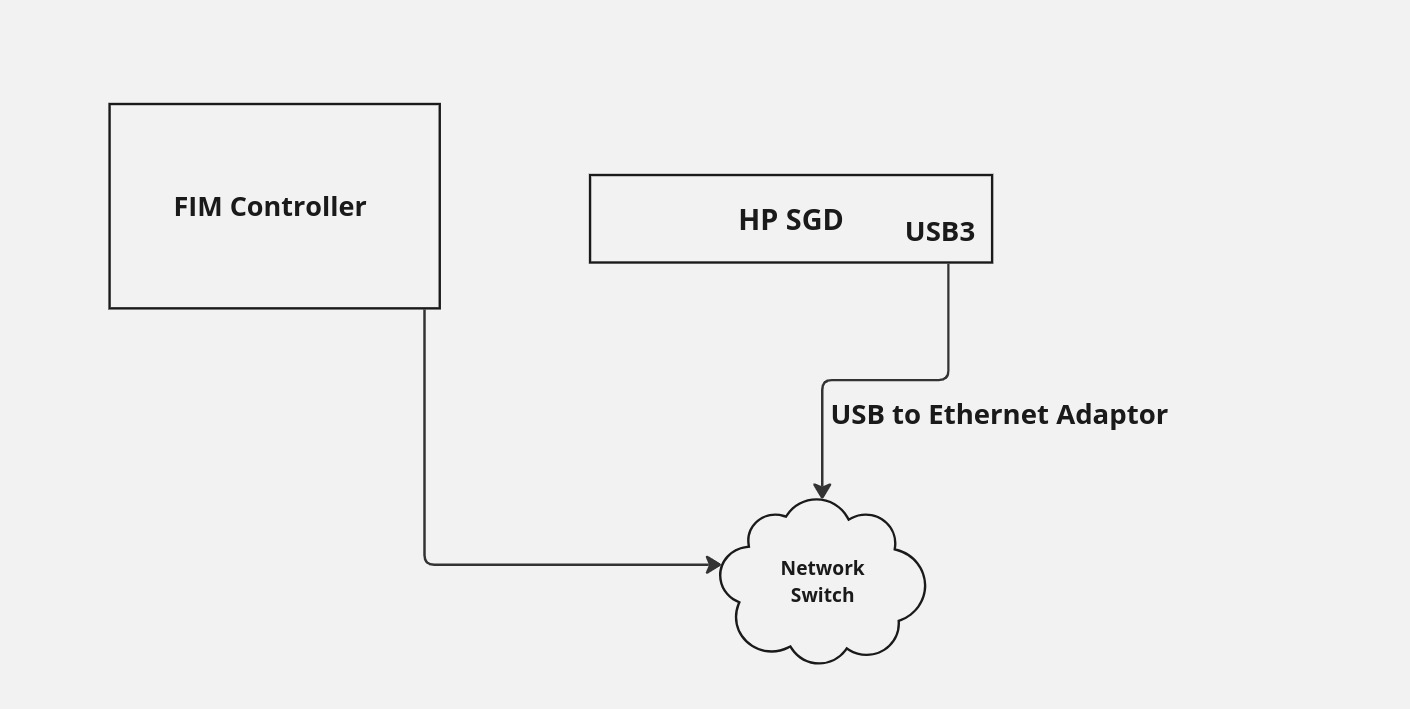

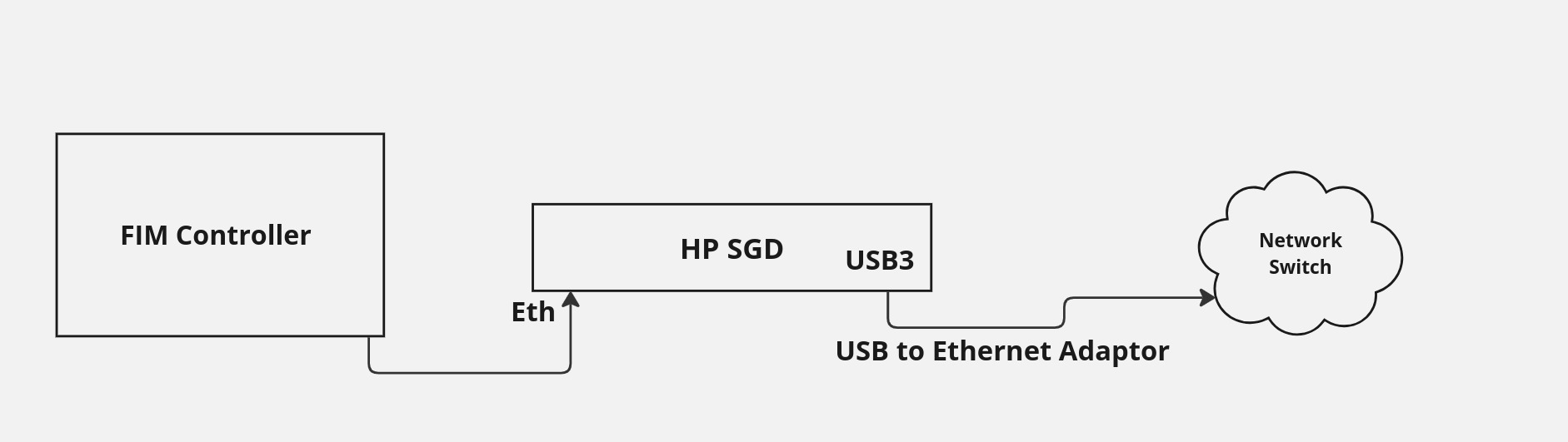

To connect the FIM controller follow one of the below diagrams.

Once the connection is made, please contact Switchdin Customer Support by phone +61 2 4786 0426 or  email at support@switchdin.com and provide these details:

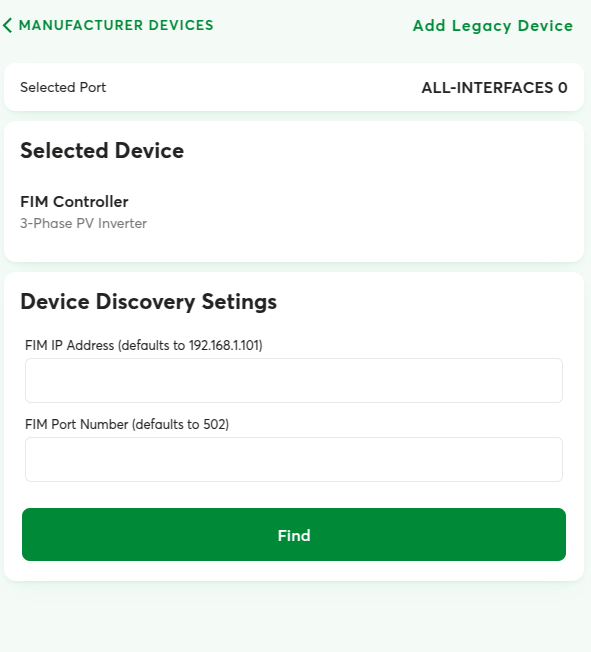

• The IP address that needs to be set on the FIM controller configuring
• The port number that needs to be set in the controller configuring

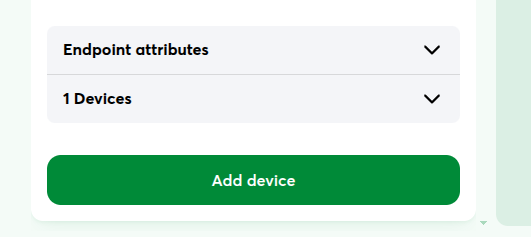

The FIM controller will be added and configured by one of our Customer Success Engineer

Horizon Power will be involved in commissioning these systems and run their tests with you.
Please note this can take 1 to 3 days to complete.

Technical requirements

The requirements for the LV EG systems can be found here
