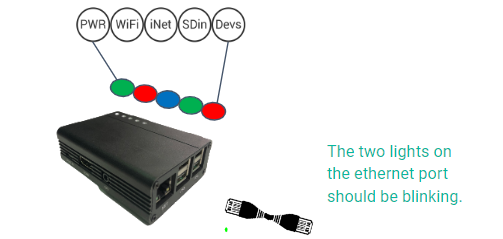

At this stage, LEDs should read:
- PWR should be green
- Wifi should be red
- iNet will stay blue looking for an access point
- SDin should be green for connected to our cloud
- Devs should be red as no device has been discovered yet
If you wish to connect to Internet through WiFi, you will do it with our app and SDin will stay red as the Droplet is not yet connected to our cloud at this stage then.
|
Position |
Meaning |
Green |
Blue |
Red |
|
1 |
Power |
On |
- |
Off |
|
2 |
WiFi strength |
> -80dB (strong) |
< -80dB (weak) |
No WiFi connection |
|
3 |
Internet comms |
Can reach our MQTT broker, either secure or insecure |
AP mode |
No internet access |
|
4 |
Switchdin comms |
Connected to MQTT broker |
- |
No connection to MQTT broker |
|
5 |
Droplet heartbeat (labelled |
Blinks constantly while droplet is running (at 0.5Hz) |
- |
- |
