To enable your SGD (Smart Grid Device) to communicate with the inverter, a few settings are required after wiring the inverter directly to the SGD. These settings include, where applicable:
- Ensuring your inverter is connected to the internet (LAN or Wifi)
- Enabling the right data format and transmission method, on the right port (ex: TCP Modbus on Port 502)
- Setting the Maximum Grid Feed-in Power to 0 W if/when control is lost
- Prioritizing the controlling priorities
- Setting the Regional setting to Australia C
Once these settings are completed, please send photographs as evidence to Renewables@horizonpower.com.au.
To access the necessary steps on the inverter interface, click on the brand of the inverter you have and follow the instructions provided by the OEM - Manufacturers:
Fronius: Download the guide for your specific inverter model
GoodWe: Download the guide for your specific inverter model
SMA: Download the guide for a SMA Sunny Boy and Tripower
Growatt: Download the guide for your specific inverter model
Sungrow: Download the guide for your specific inverter model
Sofar: Download the guide for your specific inverter model
Examples
Fronius Symo | Primo | Eco | Symo GEN24
GoodWe NS | MS | ET | EH
SMA SB AV-41 | STP AV-40 | STP Core 1
Growatt TL-X | TL3-X
Sungrow SH | SG
Sofar G3
Fronius Datamanager Interface Configuration
For Fronius Datamanager Interface Configuration, please review the manufacturer's instructions.
Click “Settings” on the right-hand side, select “MODBUS” in the left-hand menu and enter “502” in the Modbus port field. Then select “tcp” as the data export via Modbus option.
Click the tick to complete
Enable failsafe by entering the DNO editor to set Dynamic power reduction to “Limit Entire System”. Then set the Maximum Grid Feed-in Power to the desired fallback value, 0W.
Click the tick to complete
Still in the DNO Editor, set controlling priorities as follows:
Set Controlling via Modbus as Priority 1
Set Dynamic power reduction as Priority 2
Set IO control as Priority 3
Click the tick to complete

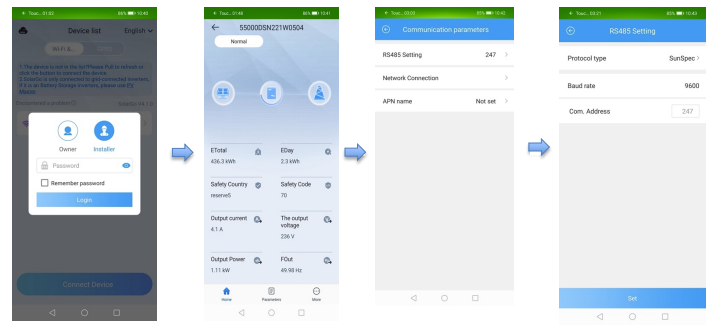

GoodWe Solar App Settings
Login to GoodWe Solar App as an Installer. Add the inverter to the App. 3. Navigate to communication parameters under “More”. Select “RS485 Setting”. and select Protocol type as “Sunspec”.

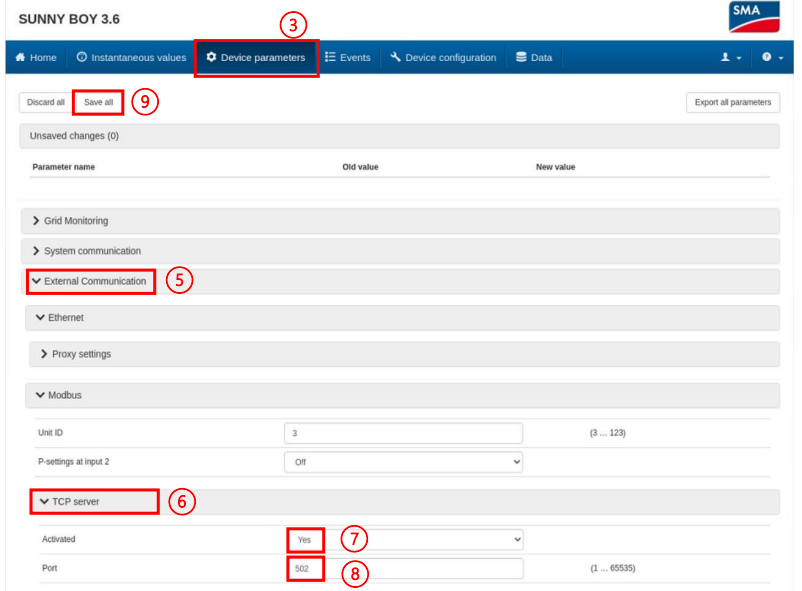

SMA User Interface
1. Establish a connection to the user interface.
2. Log into the user interface as an Installer.
3. Select the Device Parameters tab.
4. Select [Edit parameters].
5. Select the Parameter group External Communication
6. Select Modbus>TCP Server.
7. In the drop-down list Activated, select the entry Yes.
8. If necessary, change the port in the field Port. (required setting: 502)
9. Select [Save all].
